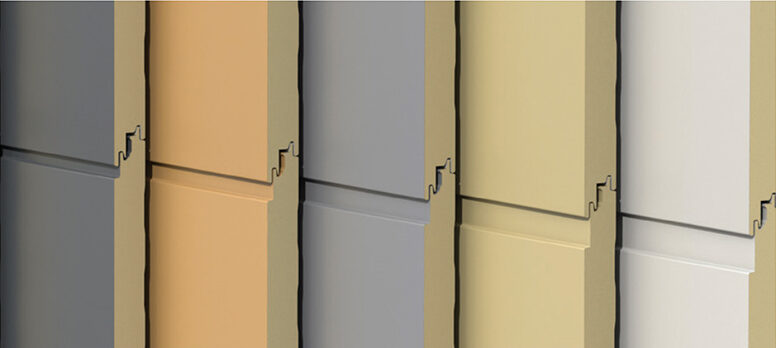

Metl-Span architectural panels have thicker gauge facings that provide a better flat, visual appearance than the thinner gauges used for profiled, commercial/industrial panels, and offer longer spans and more impact resistance. Architectural panels are usually flat, but are also available in some profiles such as striated or light mesa (planked). Quite often, they are used for horizontal applications, where panel lengths can be sized to line up with window mullions. Standard widths provide the most cost economy, but custom widths allow the designer the freedom to line up horizontal reveals with window heads and sills, providing a clean, orderly appearance.
Metl-Span commercial and industrial panels serve as walls, ceilings and roofs for commercial and industrial buildings, in new and retrofit construction. Metl-Span insulated metal panels can be easily adapted to pre-engineered metal building designs for almost any end-use as walls and roofs, saving material and labor costs. Other end applications include schools, manufacturing facilities, distribution warehouses, equipment maintenance buildings, mechanical penthouses, kiosks, equipment screens, aircraft hangars, prison units and office buildings.
Metl-Span cold storage panels function as walls, ceilings and roofs for cooler, freezer and food processing buildings, in new and retrofit construction. In addition, Metl-Span panels are ideal for dry goods warehouses and other controlled environment buildings where temperature control and insulation values are critical.
ThermalSafe® combines advanced panel design with Metl-Span's sophisticated manufacturing expertise to create a composite panel that achieves one, two and three hour fire resistance ratings under the most demanding conditions. In addition to its fire resistant characteristics, the panel provides good thermal performance and protection from the elements. The unique LockGuard® interlocking side joint further enhances the fire resistant performance of the panel with its tongue and groove engagement of the mineral wool core.
Metl-Span CFR Roof panel is an insulated metal standing seam roof panel and is the foremost innovation in all-in-one composite roof panel design, combining durable interior and exterior faces with Metl-Span's unmatched polyurethane core. The CFR insulated metal standing seam roof panel is a truly unique answer to many deficiencies common with more traditional roofing materials of the past.
Metl-Span Backup Wall Systems is the ultimate backup wall system providing superior air, water, thermal and vapor protection in an all-in-one barrier component. It can be vertically and horizontally installed with nearly any type of exterior rainscreen system. This unique insulated metal wall panel system introduces new standards in cost savings, design integrity and sustainability.
Metl-Span’s line of Single-Skin panels includes ten configurations for wall applications and one for soffit application. The line consists of concealed fastener panels with 12” to 16” module widths and exposed fastener panels with module widths of 32” and 36”. The Artisan Soffit panels come in 8”, 10” or 12” widths.
The Metl-Span Resource section contains all standard CAD details, product literature and information regarding FM Global Requirements. Visitors may also view project photos, learn about online continuing education courses and find answers to the most frequently asked questions.
Metl-Span offers one of the most in-depth installer training programs in our industry. This program is dedicated to helping installers understand how the long-term performance of the insulated metal panel system can be affected by the installer’s attention to detail. Metl-Span is committed to educating erectors in the proper use, methods and procedures for insulated metal wall and roof panel installation. This new and innovative method of training will be beneficial to installers interested in quality workmanship and expanding their skill base.

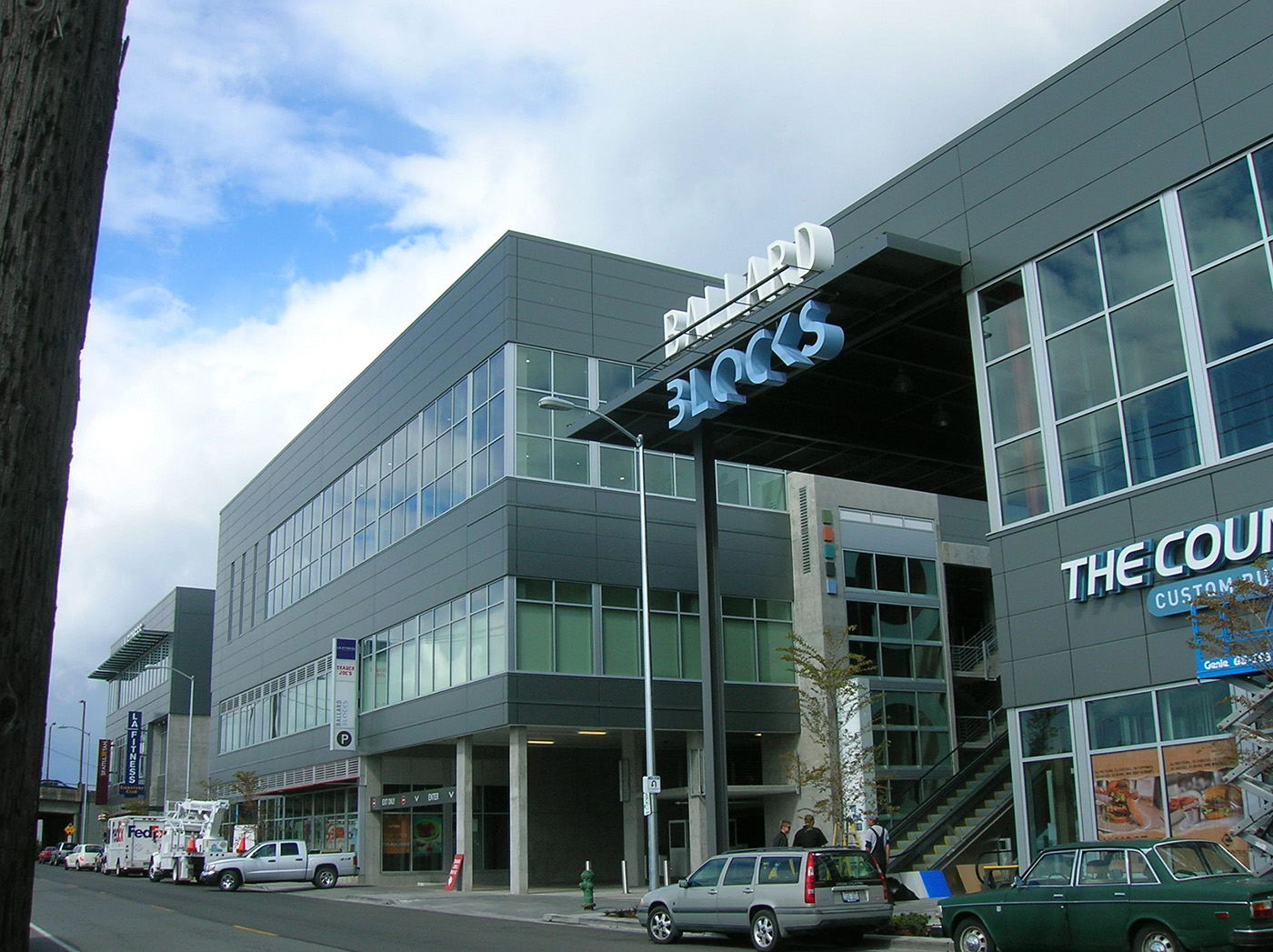

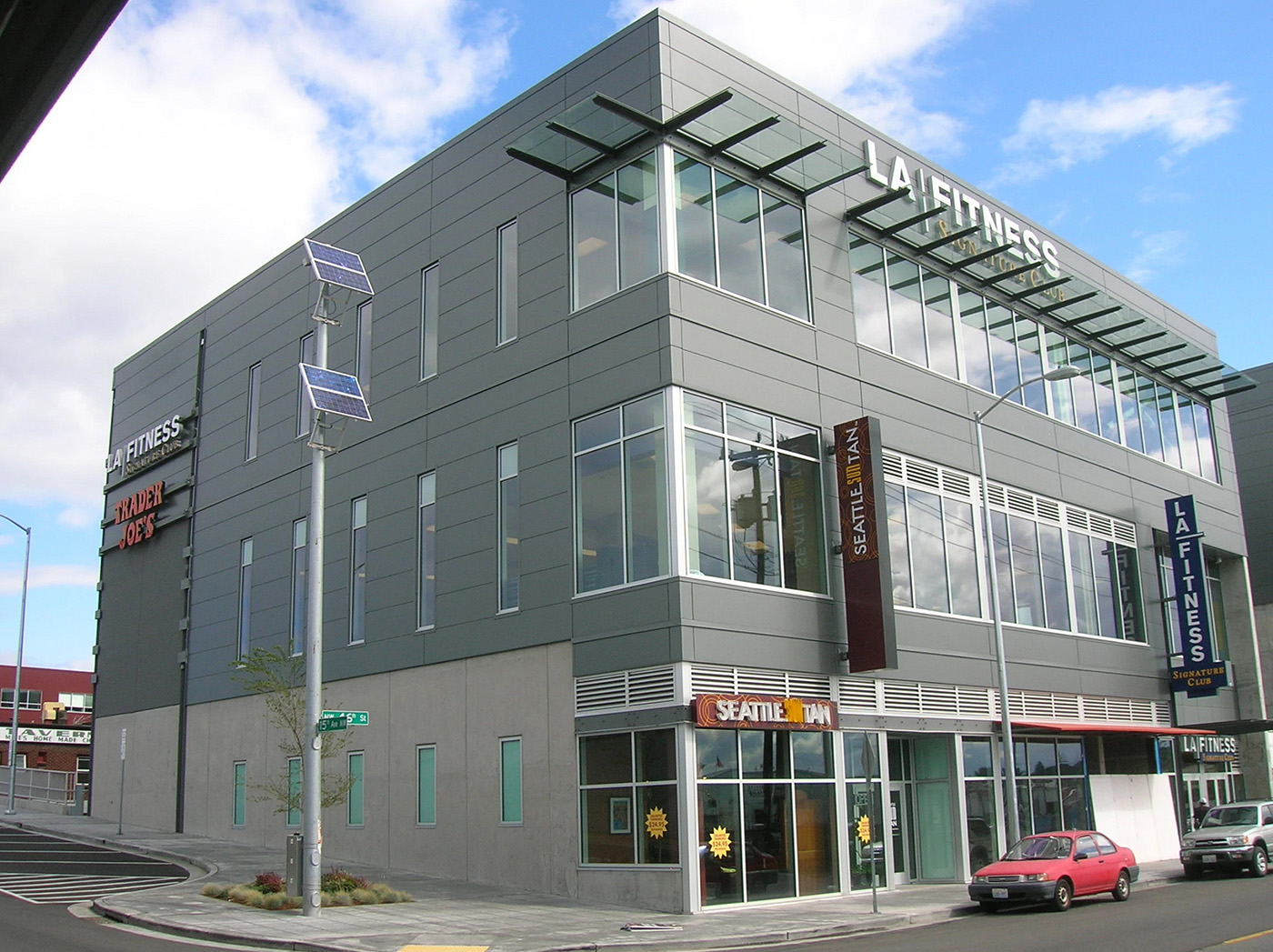

The new Ballard Blocks development in the Ballard area of Seattle offers 366,000 sq. ft. of commercial and retail space in two buildings connected by a pedestrian promenade and below-grade parking level.
“The objective was to have a clean, modern design that met sustainable building goals as well,” according to Angela Gee, project manager for Clark Design Group PLLC, Seattle. “We wanted it to be a high-performance building both in terms of the systems and the materials.”

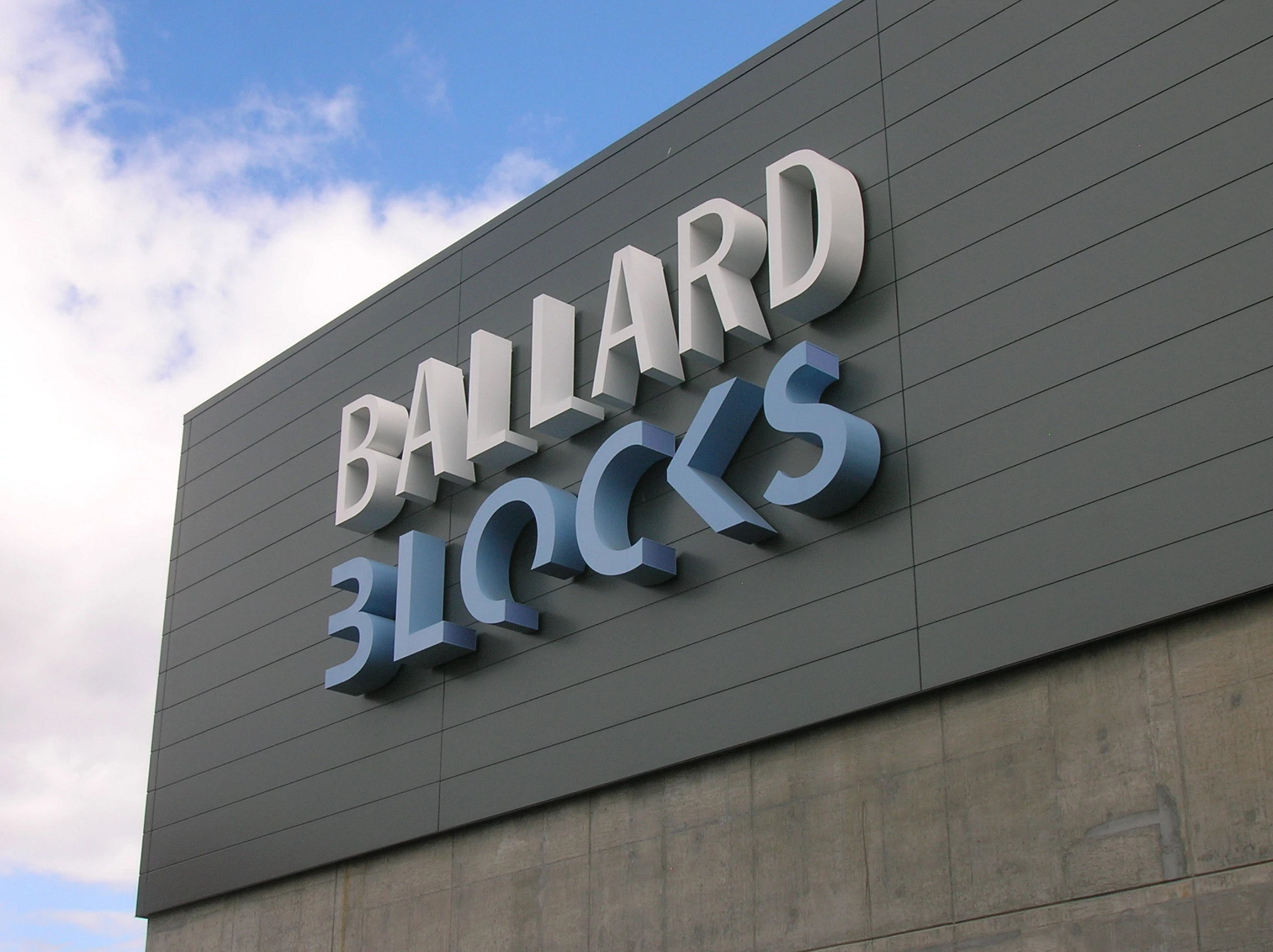

Approximately 51,000 sq. ft. of Metl-Span CFA-30 insulated wall panels were utilized. The 2” panels were finished in custom color Zactique II and were installed horizontally.
“When we researched the cladding material, we considered cost and high energy efficiency with good R value. Labor costs in the Northwest are high so using a system that reduced the labor hours made a lot of sense,” Gee said. “The Metl-Span panels provided all of the systems—the metal skin, insulation and vapor barrier–in one product. The design team was pleased with the result.”
Installation of the Metl-Span panels was done by Kenco Construction, Inc., Seattle.
The project is registered as LEED Silver and is in the process of being certified. Sustainable design elements include a high-efficiency HVAC system, low-VOC construction products, preferred parking for fuel-efficient vehicles and native and drought-tolerant plant species which enable the project to avoid installation of a costly irrigation system, as well as brownfield site remediation. Throughout construction, contractors diverted more than 93% of demolition and construction waste from landfills.
The general contractor on the project was Ledcor Construction, Henderson, NV.
Metl-Span pioneered many of the developments of insulated metal panels and continues to make significant contributions to design innovations and technology that shape industry standards. For more information on the complete line of Metl-Span products, call 877-585-9969 or visit www.metlspan.com.
