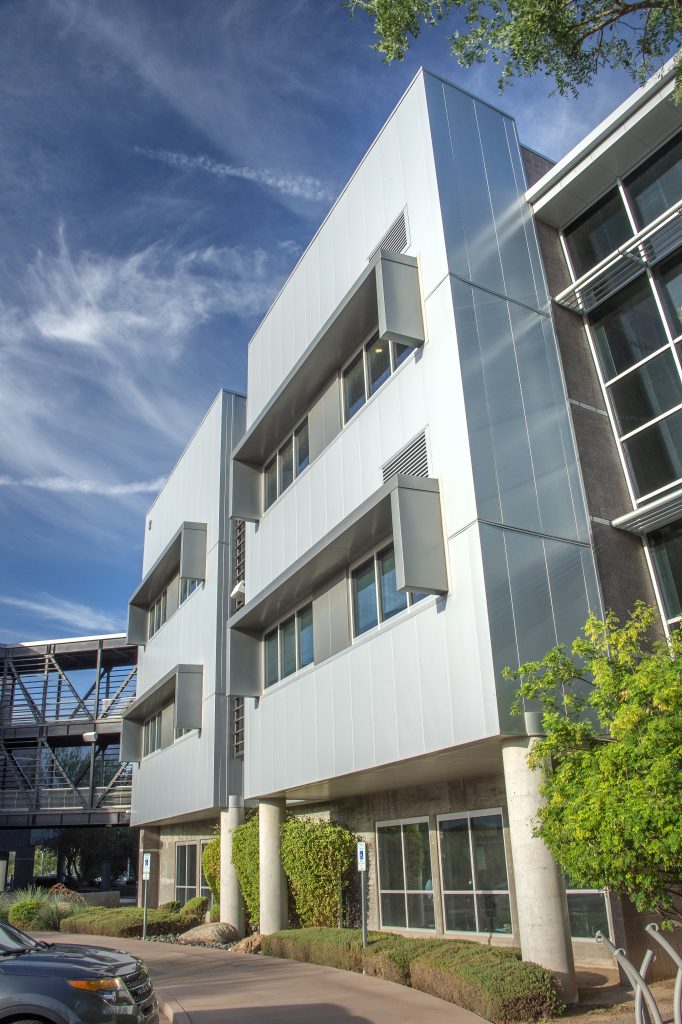

Metl-Span architectural panels have thicker gauge facings that provide a better flat, visual appearance than the thinner gauges used for profiled, commercial/industrial panels, and offer longer spans and more impact resistance. Architectural panels are usually flat, but are also available in some profiles such as striated or light mesa (planked). Quite often, they are used for horizontal applications, where panel lengths can be sized to line up with window mullions. Standard widths provide the most cost economy, but custom widths allow the designer the freedom to line up horizontal reveals with window heads and sills, providing a clean, orderly appearance.
Metl-Span commercial and industrial panels serve as walls, ceilings and roofs for commercial and industrial buildings, in new and retrofit construction. Metl-Span insulated metal panels can be easily adapted to pre-engineered metal building designs for almost any end-use as walls and roofs, saving material and labor costs. Other end applications include schools, manufacturing facilities, distribution warehouses, equipment maintenance buildings, mechanical penthouses, kiosks, equipment screens, aircraft hangars, prison units and office buildings.
Metl-Span cold storage panels function as walls, ceilings and roofs for cooler, freezer and food processing buildings, in new and retrofit construction. In addition, Metl-Span panels are ideal for dry goods warehouses and other controlled environment buildings where temperature control and insulation values are critical.
ThermalSafe® combines advanced panel design with Metl-Span's sophisticated manufacturing expertise to create a composite panel that achieves one, two and three hour fire resistance ratings under the most demanding conditions. In addition to its fire resistant characteristics, the panel provides good thermal performance and protection from the elements. The unique LockGuard® interlocking side joint further enhances the fire resistant performance of the panel with its tongue and groove engagement of the mineral wool core.

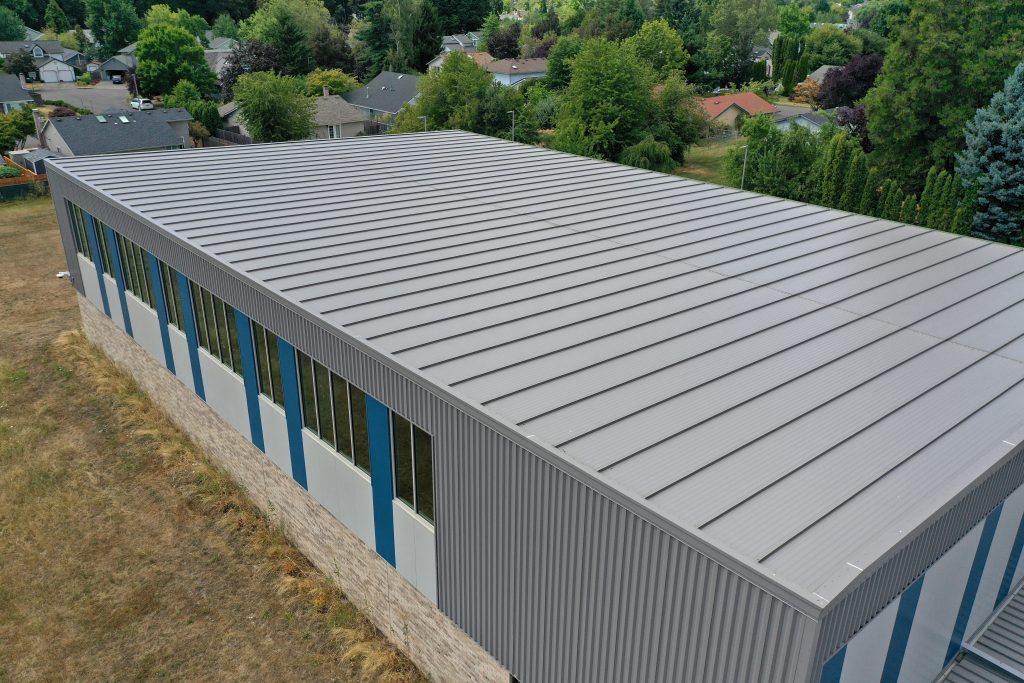

Metl-Span CFR Roof panel is an insulated metal standing seam roof panel and is the foremost innovation in all-in-one composite roof panel design, combining durable interior and exterior faces with Metl-Span's unmatched polyurethane core. The CFR insulated metal standing seam roof panel is a truly unique answer to many deficiencies common with more traditional roofing materials of the past.
Metl-Span Backup Wall Systems is the ultimate backup wall system providing superior air, water, thermal and vapor protection in an all-in-one barrier component. It can be vertically and horizontally installed with nearly any type of exterior rainscreen system. This unique insulated metal wall panel system introduces new standards in cost savings, design integrity and sustainability.
Metl-Span’s line of Single-Skin panels includes ten configurations for wall applications and one for soffit application. The line consists of concealed fastener panels with 12” to 16” module widths and exposed fastener panels with module widths of 32” and 36”. The Artisan Soffit panels come in 8”, 10” or 12” widths.
The Metl-Span Resource section contains all standard CAD details, product literature and information regarding FM Global Requirements. Visitors may also view project photos, learn about online continuing education courses and find answers to the most frequently asked questions.
Metl-Span offers one of the most in-depth installer training programs in our industry. This program is dedicated to helping installers understand how the long-term performance of the insulated metal panel system can be affected by the installer’s attention to detail. Metl-Span is committed to educating erectors in the proper use, methods and procedures for insulated metal wall and roof panel installation. This new and innovative method of training will be beneficial to installers interested in quality workmanship and expanding their skill base.
Innovations in building science are enabling contractors, builders, architects, and property managers to meet new performance and aesthetic goals. Insulated metal panels provide a simple solution with a variety of looks and appearances, combining both design freedom and functionality. This versatile product provides a simple solution for retrofit and new construction applications alike.
There are several different options to consider when selecting a wall system. These variations impact the appearance, spanning abilities, texture, and even thermal properties of the architectural panels.
Insulated metal wall systems come in a variety of textures for greater design freedom and functionality. In some projects, a large field of panels needs some contrast to catch the eye. In other projects, a lightly corrugated profile with subtle striations delivers a clean appearance.

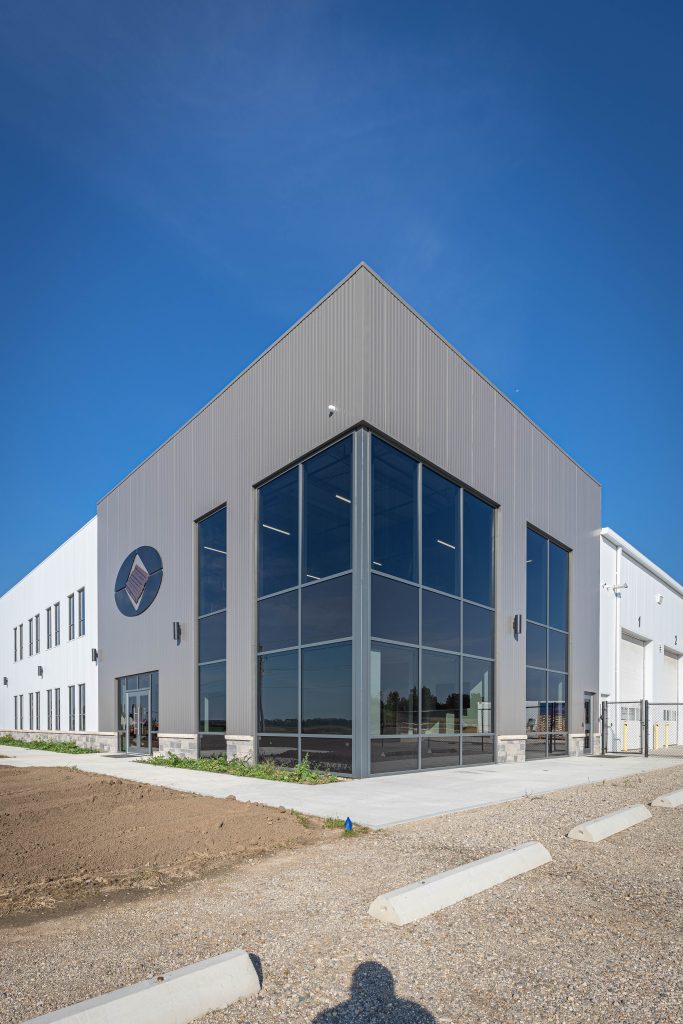

Metl Span’s profiled commercial wall panels can provide just the right accent with horizontal or vertical lineation. Striated wall systems also help mask imperfections by deflecting light, giving projects a more pristine, eye-catching appearance.
A continuous polyurethane foam core insulation system boosts the energy efficiency of the building envelope, reducing heating and cooling costs. Keep in mind, deep striations in panels decrease thermal performance because they reduce the thickness of the foam core in the low points.
Striated insulated metal panels also have impressive performance characteristics that reduce installation costs. In fact, profiled panels with heavy creases and deep striations have better-spanning abilities because the profiles increase the strength of the panels. Smooth panels lack the added strength and have shorter spanning capabilities. Therefore, some profiled architectural panels come in lengths up to 52 feet compared to unembossed flat panels with a maximum panel length of 16 feet.
Metl-Span’s embossed commercial wall products have an orange-peel texture and warm, visually appealing qualities. Embossing helps obscure dirt and blemishes for a consistent appearance. Like striations, embossed panels have greater spanning abilities, and flat panels come in lengths up to 32 feet when embossed. Longer panels are advantageous because they typically have lower installation costs because they are quicker and easier to install.
To ensure architectural panel durability, high-quality coatings must be applied. PVDF coatings provide excellent resistance from metal weathering over time for product protection. Flat, profiled, embossed, and smooth panels alike will stay pristine and attractive with quality PVDF coatings.
