CFR
Metl-Span’s CFR is an insulated metal roof standing seam panel. This innovative, all-in-one composite insulated standing seam roof panel design combines durable interior and exterior faces with a foam core. The exterior profile is 1/8″ deep embossed planks and can be used on roof slopes as low as 1/2″: 12″.
The CFR composite roof panel’s unique advantage is that it comes with factory-cut panel notching and swaged ends, eliminating the need for additional time-consuming labor. Factory installed backer plates at the endlaps eliminate the need for pre-drilling for special fasteners. Its standing seam exterior face also provides unsurpassed weathertight performance, making it an unmatched roof system.
CFR panels can also function as roofing for coolers, freezers, food processing, and dry goods warehouses. This is the ideal roof panel of choice when temperature control and longevity are critical. Contact our representatives today for more information.
| Coverage Width | 36″, 42″ |
| Thermal Values – R-Value & U-Factor | U-Factor(BTU/h-ft2*fahrenheit) Panel Width: 42″ at 35 degrees 2″ = 0.065 2.5″ = 0.052 3″ = 0.044 4″ = 0.033 5″ = 0.027 6″ = 0.022 R-Value (h*ft2*F/BTU) Panel Width: 42″ at 35 degrees 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 5″ = 43.7 6″ = 52.5 |
| Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga.; or AZ-55 aluminum-zinc coated steel with a clear acrylic coating in 24 Ga. |
| Exterior Profile | 2″ high standing seam with a Mesa profile between the seams, embossed |
| Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
| Interior Profile | Mesa, nominal 1/8″, deep embossed or unembossed |
| Joint | Concealed clip mechanically seamed single lock standing seam at the exterior side joint. The interior side joint is a single tongue-and-groove interlock. |
| Core | Foamed-in-place, PUR Foam Core, zero ozone depleting (zero ODP) Class 1 foam |
| Length | 9′-6″ to 53′-0″; contact Metl-Span for custom length availability |
| Thickness | 2″, 2 1/2″, 3″, 4″, 5″, 6″ |
** Available only from Texas Plant

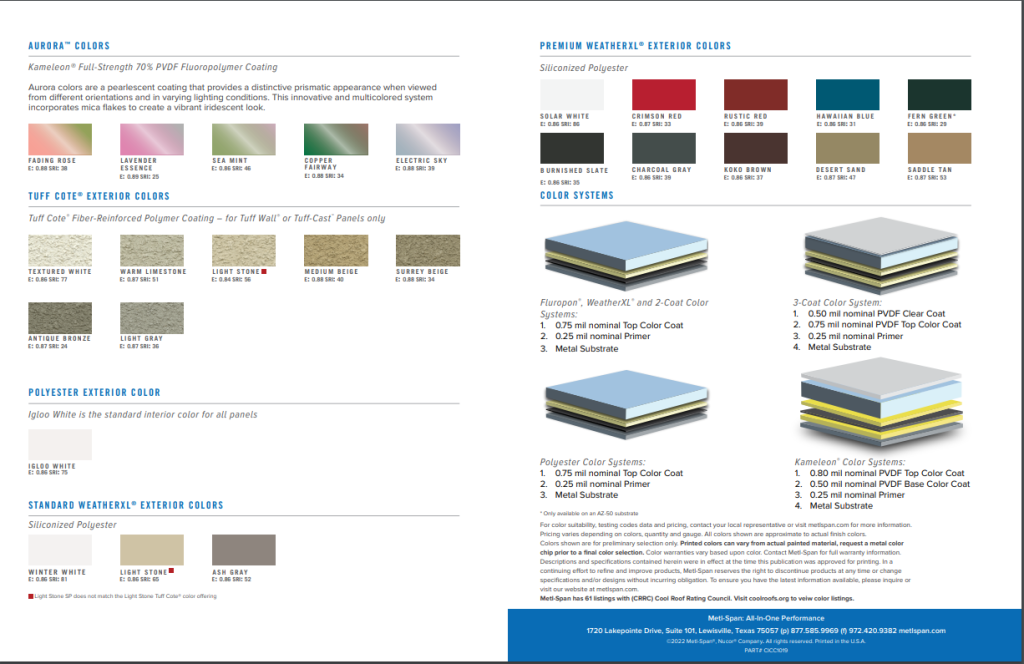

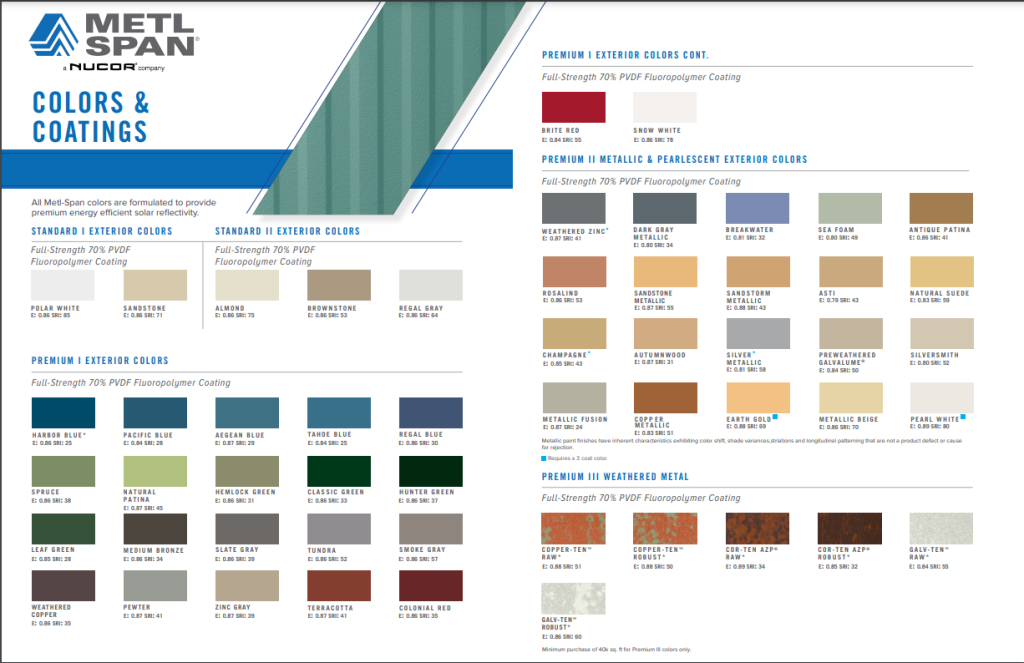

Colors
1. Metallic paint finishes will exhibit color shift, shade variances, striations and longitudinal patterning that are inherent characteristics and are not a product defect or cause for rejection.
2. All Metl-Span colors are formulated to provide maximum energy-efficiency and solar reflectivity. All standard available Premium I and Premium II colors have been formulated for maximum solar reflectance.
3. Prices vary by color, gauge and quantity of metal. Please contact your Metl-Span representative for complete information.
4. All colors shown are approximate actual finish colors displayed as accurately as possible.
5. Light Stone – Tuff Cote® does not match the Light Stone – Standard SP color offering.
Download Our Literature
Metl-Span® CFR Roof Panels For Commercial & Industrial Buildings
2012 Master Format™ Section 07 42 13.19
All specifications and designs are subject to change without notice.
Load Span Tables
The Load Span Tables below are based on Allowable Stress Design (ASD). For loads calculated based on ASCE 7-10 (LRFD), please refer to section 2.4.1 of ASCE 7-10 for the applicable load combinations using Allowable Stress Design.
For FM Global Requirements, click here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
TESTING: CFR Insulated Metal Roof Panel
| Test/Approval | Test Method | Test Title | Results |
|---|---|---|---|
| Fire US | ASTM E84 | Surface Burning Characteristics of Building Materials | Flame spread <25, smoke developed <450 |
| ASTM E108 | Standard Test Methods for Fire Tests of Roof Coverings | Passed Class A | |
| FM 4880 | Class 1 Fire Rating of Insulated Wall, Ceiling and Roof Panels | Product approved Exterior roof requires FM 4471 approval | |
| NFPA 286 | Fire Tests for Evaluating Contribution of Wall and Ceiling Finish to Roof Fire Growth | Test specimen met the criteria of the IBC Section 803.1.2.1 | |
| Fire Canada | CAN/ULC S102 | Surface Burning Characteristics of Building Materials and Assemblies | Meets the National Building Code of Canada requirements |
| CAN/ULC S107 | Methods of Fire Tests of Roof Coverings | Passed Class A | |
| CAN/ULC S126 | Fire Spread Under Roof-Deck Assemblies | Met the criteria of the standard | |
| Structural | ASTM E72 | Standard Test Methods of Conducting Strength Tests of Panels for Building Construction | See load chart |
| ASTM E1592 | Structural Performance of Metal Roof and Siding Systems by Uniform Static Air Pressure Differences | See Load Chart | |
| FM 4471 | Class 1 Exterior Roof Structural Performance | See FM Roof Load Chart | |
| UL 580 | Uplift Resistance of Roof Assemblies | UL Class 90 Uplift at 5′ and 7′ | |
| UL 1897 | Uplift Tests for Roof Covering Systems | Uplift Resistance of 166 psf at 5′ Uplift Resistance of 140 psf at 7′ | |
| Thermal Performance | ASTM C518 | Steady-State Thermal Transmission Properties by Means of the Heat-Flow Meter Apparatus | K-Factor of 0.114 BTU.in/hr.ft2.°F at 35° F mean core |
| ASTM C1363 | Thermal Performance of Building Materials and Envelope Assemblies | See Thermal Performance Guide | |
| Air Infiltration | ASTM E1680 | Rate of Air Leakage Through Exterior Metal Roof Panel Systems | <0.023 cfm/ft2 at 12 psf |
| Water Infiltration | ASTM E1646 | Water Penetration of Exterior Metal Roof Panel Systems by Static Air Pressure Differences | No uncontrolled leakage when tested to a static pressure of 12 psf Vertical or horizontal installation |
| Special Approval | Miami-Dade NOA | Product Approval for City of Miami and Dade County | Product has City of Miami and Dade County Notice of Acceptance |
| State of Florida | Product Approval for the State of Florida | Product has State of Florida approval |
